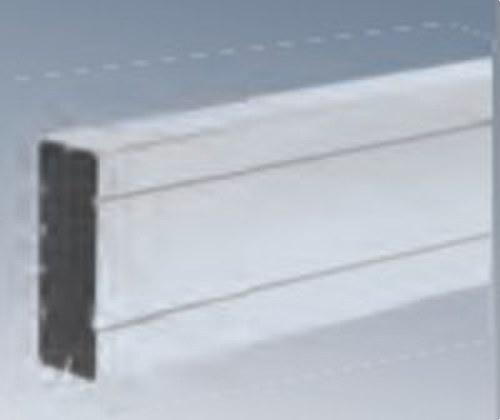

Aluminium Gutter 130x55mm

The Simon 130x55 mm aluminum cable trunking is a robust and efficient solution designed for the management and protection of wiring in professional electrical installations. Made from high-quality aluminum, this trunking offers excellent mechanical strength and high durability, making it ideal for installations in offices, commercial premises, public buildings, or industrial environments.

Its interior design allows for organized cable management, making both initial installation and future expansions or maintenance easy. Thanks to its aluminum construction, the trunking meets the highest safety standards and is non-flame propagating in case of fire.

Additionally, it features an IP4X protection rating, which guards against the entry of solid objects, and an IK07 impact resistance rating, ensuring excellent protection for wiring against knocks or heavy use.

This cable trunking also allows for the integration of electrification solutions thanks to the possibility of incorporating Simon 500 Cima mechanisms or universal Simon mechanisms using specific adapters, offering great versatility for electrical and telecommunications projects.

Main features:

• Product type: cable trunking
• Material: high-strength aluminum
• Finish: aluminum (RAL 7035)
• Dimensions: 130 x 55 x 2000 mm
• Piece length: 2 meters
• Protection rating: IP4X
• Impact resistance: IK07
• Heat resistance: up to +125 ºC (according to IEC 60695-10-2)
• Maximum working temperature: 60 ºC
• Installation temperature range: -25 ºC to +120 ºC
• Non-flame propagating
• Compatible with specific installation accessories

Integration options:

• Possibility to incorporate Simon 500 Cima solutions
• Compatible with Simon universal mechanisms via adapters
• Wide range of accessories to suit different architectural configurations

Installation:

• Wall or ceiling installation
• Component removal only with tools
• Cover removal with tools
• Frame disassembly only with tools

Supply conditions:

• The indicated price is per linear meter
• Supplied in lots of 6 units
• Total lot length: 12 meters

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive cloths or cleaners containing chlorine

This Simon aluminum trunking is the ideal choice for those seeking a professional solution for cable management, combining strength, safety, and installation flexibility.

A system designed for demanding installations where cable organization and circuit protection are as important as the final aesthetics of the space.
