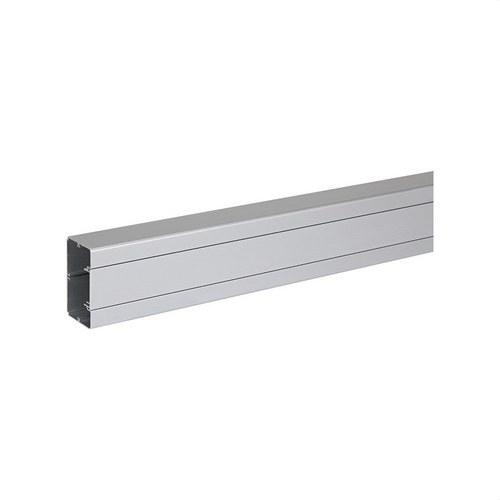

Aluminium Trunking 90x55mm K45 with 1 Compartment

The Simon K45 aluminum cable trunking measuring 90x55 mm with a single compartment is designed to simplify the installation of all K45 range functions without the need for additional accessories, optimizing assembly time and ensuring a professional finish.

Made from high-quality anodized aluminum, it offers excellent mechanical and thermal resistance, with an IK09 rating and IP4X protection grade. Its material is flame-retardant, self-extinguishing, and non-flame propagating, ensuring maximum safety in any installation.

The trunking design keeps electrical cables isolated from voice, data, and multimedia cables, maintaining the proper bending radius throughout the entire distribution. Additionally, thanks to its pre-punched lines and installation accessories, it allows for branching to Minicanal and Cable Ducts, adapting to different architectures.

Technical specifications:

• Dimensions: 90 x 55 x 2000 mm
• Version: 1 compartment
• Material: anodized aluminum
• Finish: aluminum
• Heat resistance: +125 ºC (IEC 60695-10-2)
• Maximum working temperature: 120 ºC
• Installation range: -25 to +120 ºC
• Installation: wall or ceiling
• Component removal: only with tools
• Cover removal: tool-free
• Frame disassembly: only with tools
• Protection grade: IP4X
• IK rating: IK09
• Compatible with K45 functions
• Capacity: 2 m per unit, supplied in sets of 6 units (12 m total)
• Maintenance: clean with a soft, dry cloth; avoid chlorine-based abrasive products

The Simon K45 cable trunking combines durability, safety, and versatility, ensuring any electrical, data, or multimedia installation is perfectly organized and protected.
